Enhancing Precision in Industrial Strain Measurements
Strain Gauge Amplifier
Compact Design
High Gain
Wide Compatibility
Low Power

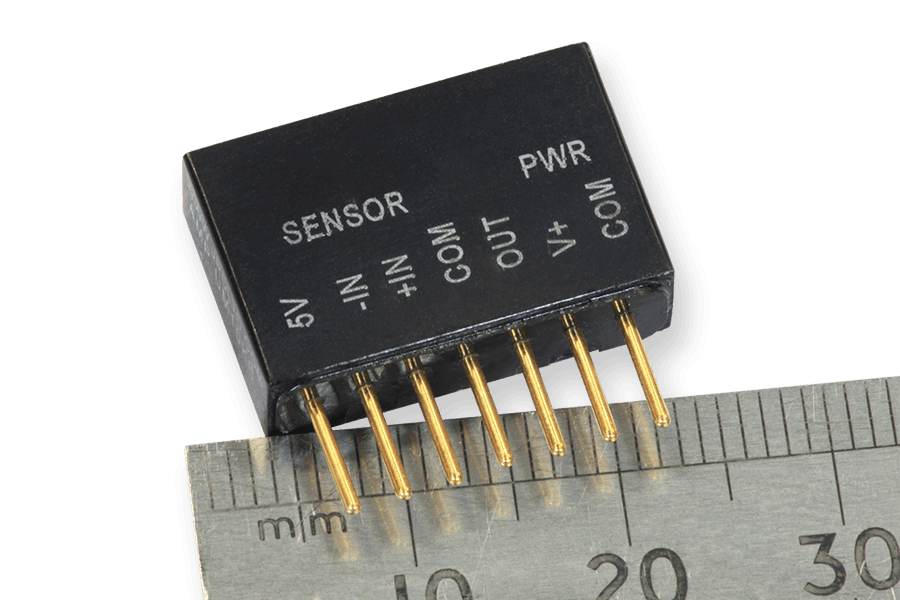

The ultra-miniature strain gauge amplifier AMP-UM10KB has been developed based on modern chip technology to meet the growing need for industrial strain measurements in demanding environments, where where a miniature strain gauge signal conditioner and easy set-up are essential.
Operation of the Strain Gauge Amplifier
The design concept is based upon the ability to place complete strain gauge conditioning (stable 5-V bridge excitation and precision instrumentation amplifier circuitry) in close proximity to the strain gauges. An amplified (high level) output signal which has good immunity to noise can be safely transmitter via slip rings or long cables, which considerably reduces noise and increases signal integrity.
AMP-UM10KB is a fixed gain device with nominal gain of 1000. Other fixed gain values are available on request. The standard unit is designed to service full-bridge gauges; units with internal completion resistors are available on request, for servicing half-bridge or quarter-bridge gauges.
Key Features
The AMP-UM10KB is engineered with robust protection features to safeguard against potential voltage transients and ensure reliable operation. The amplifier boasts several advanced features to enhance usability and reliability:
Auto Calibration Feature
Upon startup, the amplifier automatically initiates a calibration process by connecting a precision 249 kΩ shunt resistor to one limb of the Wheatstone bridge for 5 seconds. This strain gauge signal conditioner boasts accurate readings and consistent performance over time.
LOW CURRENT CONSUMPTION
With a current consumption of less than 4 mA, the strain gauge amplifier operates efficiently, minimising power requirements. The required current capacity varies based on the strain gauge resistance, with 46 mA for 120Ω strain gauges and 18 mA for 350Ω strain gauges.
Visual Power Indicator
The AMP-UM10KB is equipped with a white LED positioned on top of the amplifier, serving as a visual indicator of the unit's power status. When the correct power supply conditions are met, the LED illuminates. This feature is particularly beneficial in remote installations, allowing for quick visual inspection to identify any power supply issues.
Input Pin Protection
Both input pins, IN+ and IN–, are internally safeguarded against voltage transients of up to ±40 V. This protection is achieved using an internal current limiting device, which eliminates the need for a series resistor that could introduce input noise. Additionally, the inputs remain protected even if the power supply is disconnected or turned off.
Output Short Circuit Protection
The device is designed to withstand continuous output short circuits to ground, providing an added layer of protection against potential damage. This feature enhances the durability and longevity of the AMP-UM10KB in demanding industrial environments.
Suitable Applications of the Strain Gauge Signal Conditioner
Specialised load cells
Automotive
Rail traction
Aeronautics
Rotating machinery
Civil engineering
Biomechanics
Research and development
Wind Turbines
The versatility of the AMP-UM10KB extends across various industries, finding applications in diverse sectors. Its adaptability to various environments underscores its significance as a key component of modern industrial strain measurements, serving as a reliable strain gauge signal conditioner.
Balancing
The AMP-UM10KB features a 25-turn on-board balancing potentiometer, enabling zeroing of the output for zero load conditions or pre-setting of the required reference voltage. For specialised applications where adjustment of the bridge out-of-balance is unnecessary, the unit is also available without balancing or calibration capabilities.
Electrical - Mechanical Attributes
Screened against electromagnetic interference (EMI) and encapsulated for enhanced durability, the AMP-UM10KB guarantees reliable operation even in harsh conditions, withstanding forces of up to 3000g. Its compatibility with standard 0.1” pin spacing facilitates seamless integration into existing systems, while internal protection mechanisms safeguard against voltage transients and output short circuits.
Specification Overview of the Strain Gauge Amplifier
- Power Supply: Single 6 - 16 VDC
- Bridge Supply: Constant 5 V nominal
- Gain: 1,000 standard, non-standard available on request
- Dynamic Response: DC - 7 kHz (-3 dB) at 1,000 gain
- Temperature Range: -40°C to +125°C
- Mass: 4 grams
- Nonlinearity: ±0.02% of FSR
- Common Mode Rejection (CMR): 100 dB (minimum)
- Gain vs. Temperature: ±25ppm/°C (typical)
- Current Consumption: <7 mA @ 6 VDC
Looking to Simplify Your Load Cell Integration?
Discover Transmission Dynamics’ Digital Load Cell Amplifier – the smallest, most advanced amplifier designed to enhance your load cell applications. With easy digital setup, multiple output options, and a compact design, this ultra-miniature device offers unparalleled precision and reliability in demanding industrial environments.
Why Choose Our Digital Load Cell Amplifier?
Versatile Data Handling
Multiple analogue and digital output options.
User-Friendly Configuration
Simple PC-based setup and automated calibration.
High Precision
True 24-bit resolution for accurate measurements.
Why Choose Transmission Dynamics?
In a competitive market, choosing the AMP-UM10KB for your industrial strain measurements reflects our dedication to quality. Here’s why selecting our product ensures precision and reliability:
Expertise
With years of experience in the field of industrial instrumentation, we bring a wealth of expertise to every project. Our team of seasoned engineers is dedicated to delivering innovative solutions tailored to your specific needs.
Quality Assurance
At every stage of production, from design to deployment, quality is our foremost priority. Rigorous testing procedures ensure that each AMP-UM10KB meets the highest standards of performance and durability, guaranteeing peace of mind in the most demanding environments.
Customer Satisfaction
Our customer-centric approach places your satisfaction at the heart of everything we do. From initial consultation to ongoing support, we are committed to exceeding your expectations and building lasting partnerships based on trust and reliability.
Discover the impact of precision. Select the AMP-UM10KB for your industrial strain measurement requirements and explore new opportunities.
Reach out to us today to learn more and begin enhancing your instrumentation capabilities. Your journey towards improved precision begins now.
